7/16 DIN Connector Female Chassis Mount Solder Cup / Post RF Connection - by W5SWL
7/16 DIN Connector Female Chassis Mount Solder Cup / Post RF Connection - by W5SWL
- Vendor
- by W5SWL
$26.69
We sell the good stuff !

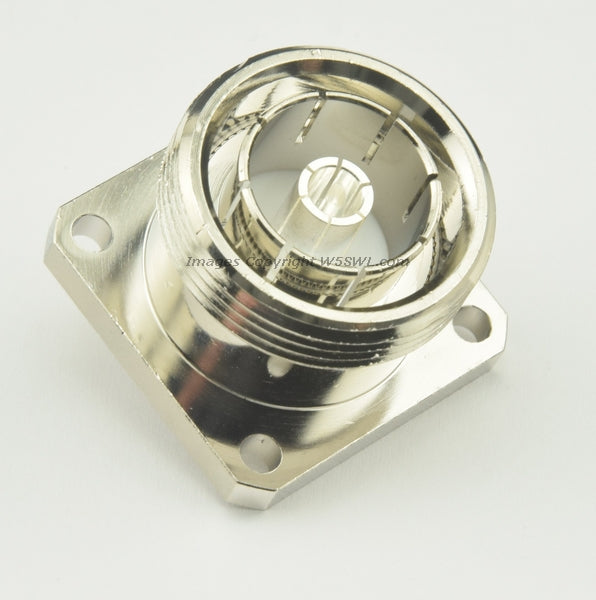

7/16 DIN Female Chassis Mount
Premium Adapter Series
Premium Adapter Series
Product Details
| Brand | by W5SWL | |
| Model | 721405421664 | |
| Side A | 7/16 DIN Female |
|
| Side B | NA | |
| Fits Cable Type | Solder cup accepts RF wire up to .098" |
|
| Dielectric | Teflon | |
| RF Pin Plating |
Silver |
|
| Body Plating | Nickle | |
| Impedance Ohms | 50 | |
| Other Detail | 4 Hole Chassis Mount. Hole Spacing approx 1" ctr to ctr across flat side |
|
| Package Quantity | 1 |
A 7/16 DIN Female designed for direct connection and use with cable sizes up .098" center wire diameter! Perfect for use with Hi Power Ham gear, VHF and UHF equipment, LPFM use, antenna construction, EME and other important applications. Includes connector cap as shown. Has a nice thick flange of approx .16" and 1.26" side to side. The solder cup shoulders are designed and to allow the center hole to be dilled to a bit larger diameter for a RF wire custom fit if needed.
