DC 3 Fan Assembly 4.5-13.8 VDC Model Railroad or Ham Radio Projects MagLev

DC 3 Fan Assembly 4.5-13.8 VDC Model Railroad or Ham Radio Projects MagLev - Dave's Hobby Shop by W5SWL
DC 3 Fan Assembly 4.5-13.8 VDC Model Railroad or Ham Radio Projects MagLev - Dave's Hobby Shop by W5SWL

DC 3 Fan Assembly 4.5-13.8 VDC Model Railroad or Ham Radio Projects MagLev

Vendor
SUNOX
$14.95
Our stock # is UC10122
We have 80 in stock ... Enjoy!

RF Connectors & Gadgets:

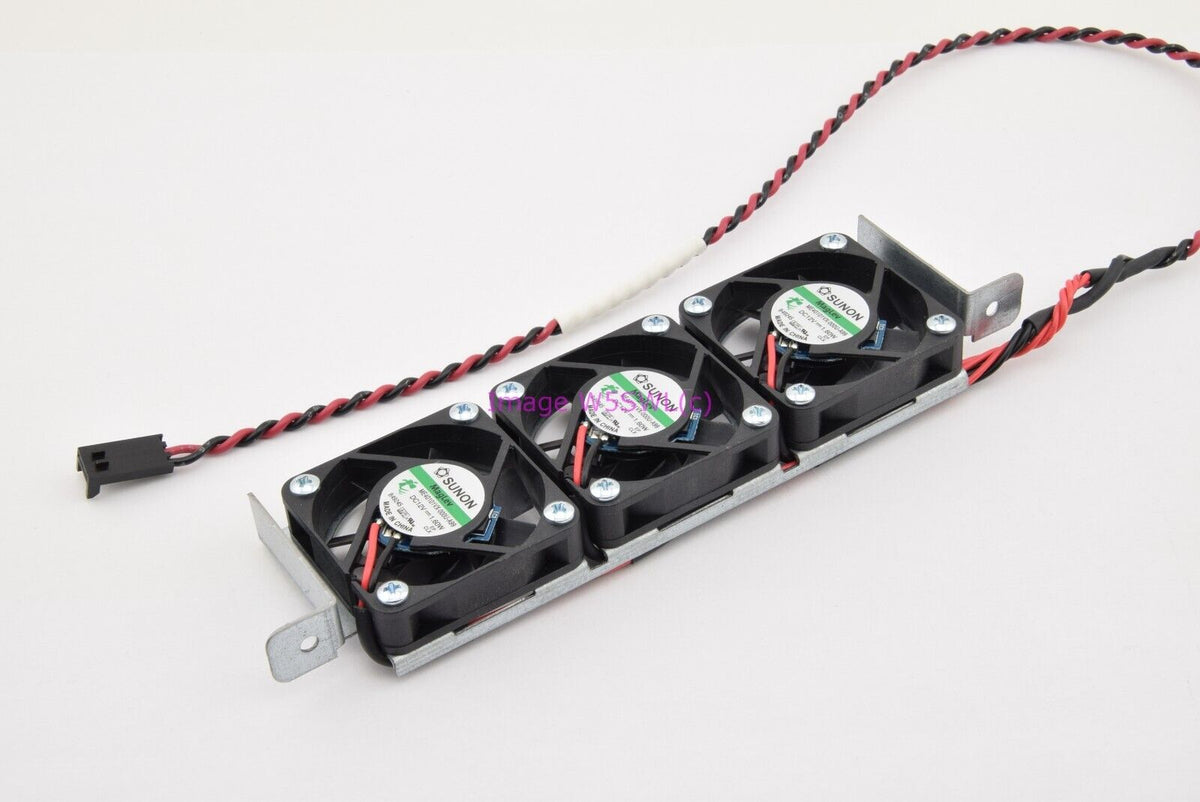

  • SUNON Cooling Fan Assembly
  • Fan model ME40101VX-000U-A99
  • MagLev ME Series TubeAxial
  • 4.5 to 13.8 Volts DC for a wide range of applications
  • DC Brushless
  • Vapo-Bearing Design (70,000 Hours life at 40C rating)
  • Noise a low 36.1 db(A)
  • 8500 RPM
  • About 40mm x 40mm x 10mm size
  • Hole Spacing about 1.25 inches
  • 9.9 CFM at max voltage PER FAN
  • Current at 12 Vdc voltage is a low .130A PER FAN. 1.6 Watts PER FAN
  • Each fan is a 2 wire fan, red and black.
  • Use the whole assembly or remove individual fans as needed
  • The assembly measures about 1-1/2" high x 6-1/4" long (ear to ear) x 1/2" thick
