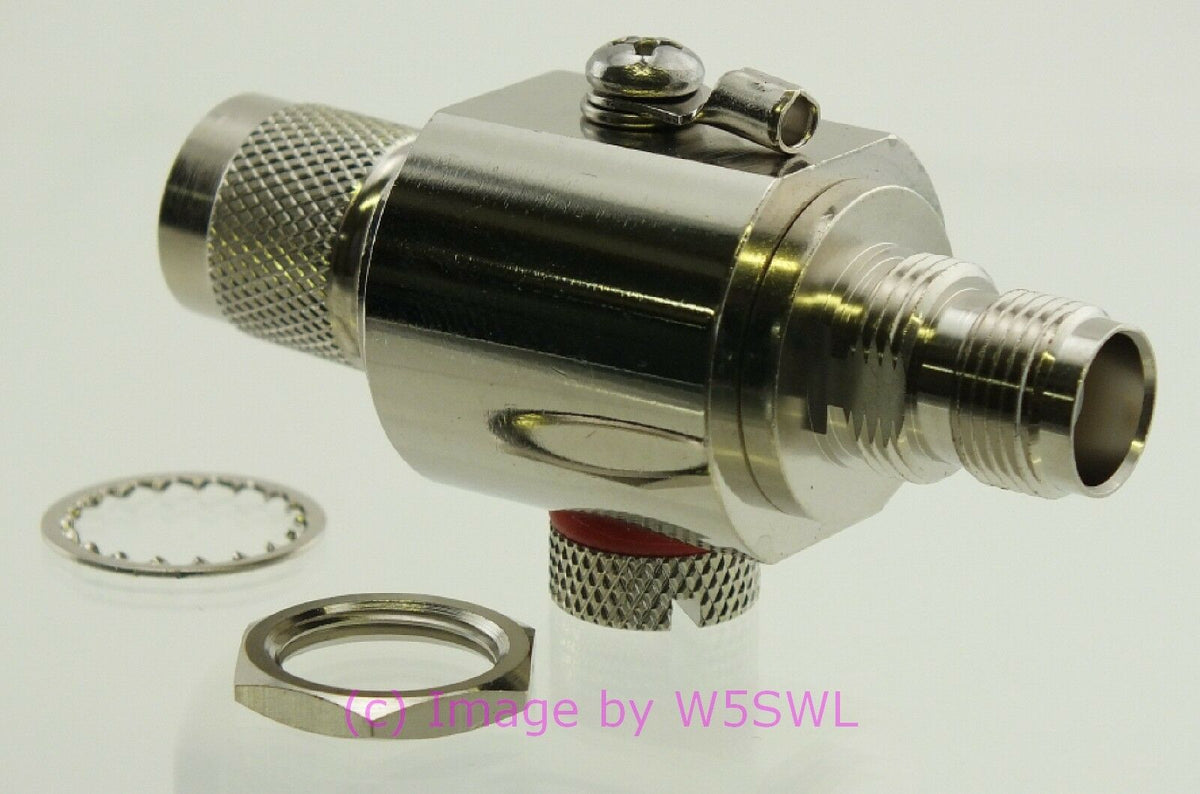

W5SWL Surge EMP Protector Lightning Arrester Gas Tube TNC Male Female 6 GHZ
W5SWL Surge EMP Protector Lightning Arrester Gas Tube TNC Male Female 6 GHZ
- Vendor
- by W5SWL
$26.95
We sell the good stuff !
6 GHz Gas Tube Surge Protection
Premium Protection Devices
Premium Protection Devices
Product Details
| Brand | by W5SWL | |
| Model | 721405424160 | |
| Side A |
TNC Male | |
| Side B | TNC Female | |
| Gas Tube Voltage | 230 | |
| Upper Frequency Limit | 6 GHz | |
| Loss at 1GHz | .15 ~ .2 dB | |
| Impedance Ohms | 50 | |
| Other Detail | Bi-Directional. Bulkhead or inline with ground wire attachment | |
| Package Quantity | 1 |
Precision protector utilizes a non replaceable gas tube design to ensure maximum factory tuned performance at 6 GHz. Factory set for low loss and low VSWR.
